Mastering DelegatingHandler in .NET: Logging HTTP Requests with HttpClient

A practical guide to DelegatingHandler in .NET,Learn how to log HTTP requests and responses using a custom handler.

When working with APIs in .NET, HttpClient is the go-to utility for making HTTP calls. But what if you want to log requests and responses? Or add custom headers like correlation IDs or tokens? That’s where DelegatingHandler comes in — a powerful but often underutilized tool in .NET.

In this article, we’ll explore DelegatingHandler with a hands-on example: building a custom LoggingHandler to log every request and response made by HttpClient.

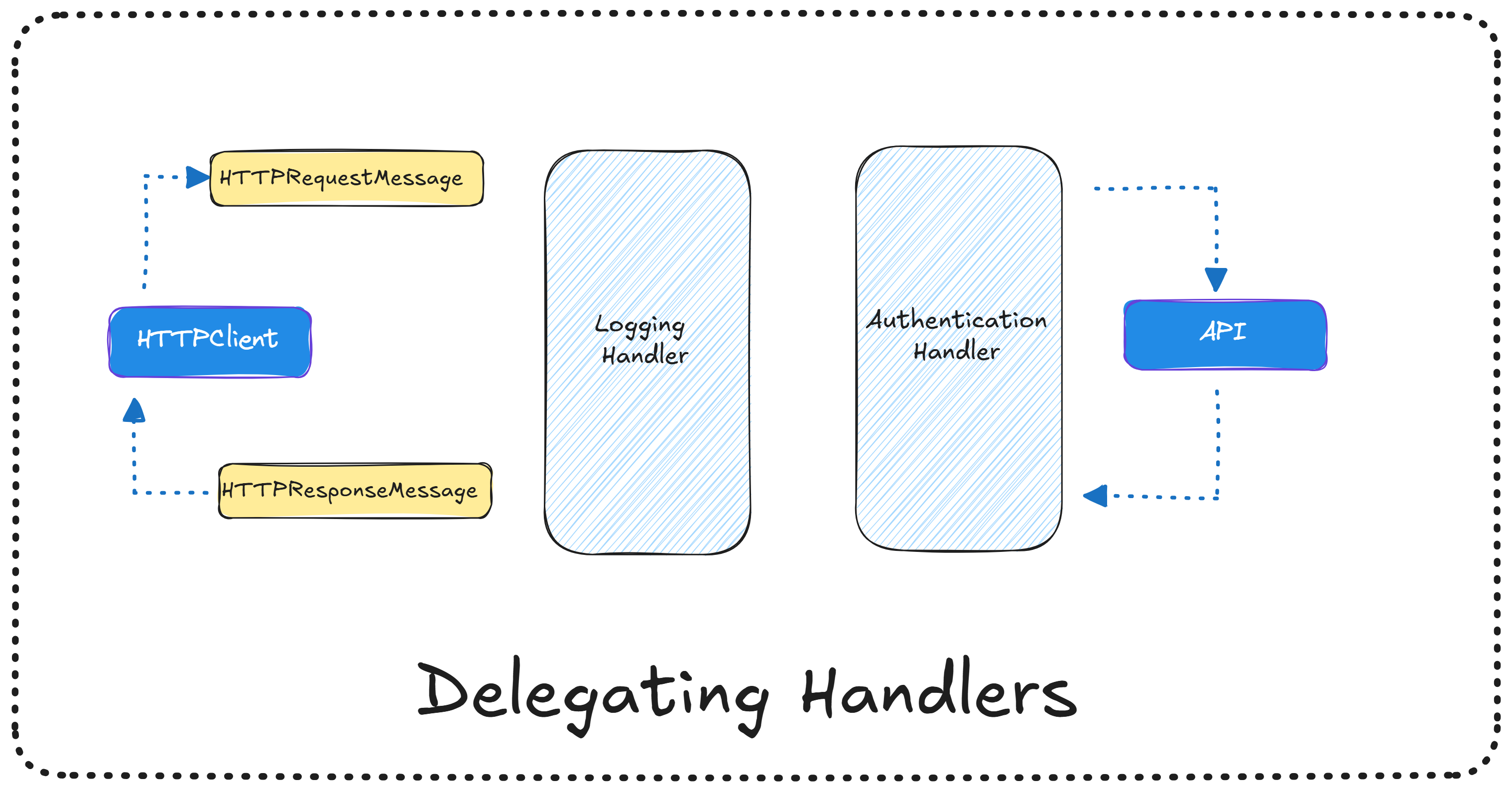

🧠 What is a DelegatingHandler?

A DelegatingHandler is a special type of message handler in the HttpClient pipeline that lets you intercept, inspect, and manipulate HTTP requests and responses — just like middleware does in ASP.NET Core.

You can chain multiple DelegatingHandlers together to handle cross-cutting concerns like:

• Logging

• Authentication

• Tracing and Correlation IDs

• Retry logic

• Response transformation

• Mocking in tests

🔧 Let’s Build: Logging with DelegatingHandler

We’ll build a .NET 6+ API that fetches posts from a public API (https://jsonplaceholder.typicode.com/posts) and logs the HTTP call using a custom LoggingHandler.

✅ Step 1: Create the LoggingHandler

Create a new class called LoggingHandler.cs:

public class LoggingHandler : DelegatingHandler
{
    private readonly ILogger<LoggingHandler> _logger;

    public LoggingHandler(ILogger<LoggingHandler> logger)
    {
        _logger = logger;
    }

    protected override async Task<HttpResponseMessage> SendAsync(
        HttpRequestMessage request,
        CancellationToken cancellationToken)
    {
        _logger.LogInformation("➡️ Sending Request: {Method} {Uri}", request.Method, request.RequestUri);

        if (request.Content != null)
        {
            var requestBody = await request.Content.ReadAsStringAsync();
            _logger.LogInformation("📤 Request Body: {Body}", requestBody);
        }

        var response = await base.SendAsync(request, cancellationToken);

        _logger.LogInformation("⬅️ Received Response: {StatusCode}", response.StatusCode);

        if (response.Content != null)
        {
            var responseBody = await response.Content.ReadAsStringAsync();
            _logger.LogInformation("📥 Response Body: {Body}", responseBody);
        }

        return response;
    }
}

✅ Step 2: Create the PostService

Now, let’s create a simple service that uses HttpClient to call an external API.

public class PostService
{
    private readonly HttpClient _httpClient;

    public PostService(IHttpClientFactory httpClientFactory)
    {
        _httpClient = httpClientFactory.CreateClient("MyClient");
    }

    public async Task<string> GetPostsAsync()
    {
        var response = await _httpClient.GetAsync("https://jsonplaceholder.typicode.com/posts");
        response.EnsureSuccessStatusCode();
        return await response.Content.ReadAsStringAsync();
    }
}

✅ Step 3: Create the Controller

We’ll create an API controller that uses the PostService.

using Microsoft.AspNetCore.Mvc;

[ApiController]
[Route("api/[controller]")]
public class PostController : ControllerBase
{
    private readonly PostService _postService;

    public PostController(PostService postService)
    {
        _postService = postService;
    }

    [HttpGet]
    public async Task<IActionResult> Get()
    {
        var result = await _postService.GetPostsAsync();
        return Content(result, "application/json");
    }
}

✅ Step 4: Configure in Program.cs

Here’s how you configure the whole pipeline in your Program.cs (for .NET 6/7/8):

var builder = WebApplication.CreateBuilder(args);

// Add services
builder.Services.AddControllers();
builder.Services.AddTransient<LoggingHandler>();
builder.Services.AddTransient<PostService>();

builder.Services.AddHttpClient("MyClient")
                .AddHttpMessageHandler<LoggingHandler>();

var app = builder.Build();

// Configure the HTTP pipeline
app.UseHttpsRedirection();
app.UseAuthorization();
app.MapControllers();
app.Run();

🧪 Test the API

Run the application and visit:

https://localhost:{PORT}/api/post

You should receive a JSON response from the external API, and in the console you’ll see logs like:

➡️ Sending Request: GET https://jsonplaceholder.typicode.com/posts
⬅️ Received Response: 200
📥 Response Body: [{"userId":1,"id":1,"title":"..."}]

📦 Folder Structure

Here’s a suggested folder structure:

/MyApiProject
│
├── Handlers
│   └── LoggingHandler.cs
│
├── Services
│   └── PostService.cs
│
├── Controllers
│   └── PostController.cs
│
└── Program.cs

🔍 Real-World Use Cases

DelegatingHandler isn’t just for logging. You can use it for:

✅ Adding authentication tokens
✅ Attaching correlation or trace IDs
✅ Handling retries with Polly
✅ Simulating APIs in tests
✅ Transforming or validating responses

🧠 Final Thoughts

DelegatingHandler is one of those elegant design features in .NET that lets you build powerful and clean middleware-like logic for outgoing HTTP requests. If you're calling external APIs, it’s a must-know tool in your toolbox.

Start small with a logging handler, and then evolve your pipeline with authentication, telemetry, retry, and more — all cleanly separated from your core logic.

💬 Have you used DelegatingHandlers in production? Share your tips or use cases in the comments below!

📁 GitHub Example

👉 Full working code available at:
🔗 https://github.com/KanaiyaKatarmal/LoggingHTTPCalls

---

I hope you found this guide helpful and informative.

Thanks for reading!

If you enjoyed this article, feel free to share it and follow me for more practical, developer-friendly content like this.

---
